ASPHALT PLANTS (click on photos for a larger image)

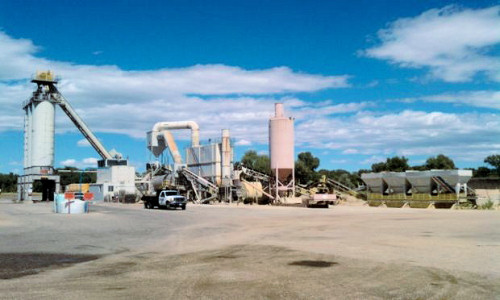

Gencor 400 Ultradrum Counterflow Asphalt Plant
[Click] on above image for a larger view [ ]
  • Gencor Baghouse w/Pulse-jet 70,000 acfm
  • 560 6"x 14' Bags
  • Single Auger Discharge 300 hp Fan and 2 Screw Compressors
  • Baghouse is Skid Mounted
  • 7 Bin Cold Feed System
  • Gencor Four Bin Cold Feed
  • 24" Gathering Conveyor w/Incline Foldable Stinger Belt
  • Standard Havens Three Bin Cold Feed
  • Gencor 4' x 10' Single-Deck Scalping Screen (Skidded)
  • Gencor 30" x 64' Scale Conveyor (Portable)
  • Rap System
  • Rap Bin 8' x 14' w/3' x 8' Kolberg Rap Scalping Screen
  • 40" x 50' Rap Scale Conveyor
  • Lime system
  • 300 bbl Free Flow Portable Self Erecting Lime Silo w/Weigh Pod and a Bin Vent
  • Skidded Eagle Works Twin Shaft Lime Pugmill
  • Standard Haven 750 Ton Asphalt Storage System
  • (3) Three Standard Havens 250 Ton Silos w/Transfer Conveyors
  • A/C System
  • Gencor Hycgo Oil/Gas 2 Million BTU Hot Oil Heater
  • Gencor 30,000 gal Coiled Skidded A/C Tank w/Unloading Pump
  • Standard Havens 20,000 Gallon Coiled Skidded A/C Tank w/Unloading Pump
  • Fuel System
  • 18,000 Gallon Vertical Coiled Heavy Oil Tank
  • 8,000 Gallon Vertical Coiled Diesel Tank
  • 2000 Process Heating in Line Pre Heater
  • Control House
  • Gencor Bi-Level 360 Degree View Skidded Control House
  • BC 250 Computer Controls
  • Gencor 3D Burner Controls w/Load Out Controls and Bucketed Motor Starters
  • Quick Disconnect Above Ground Wiring
  • #100-90
[Click] on above images for a larger view
